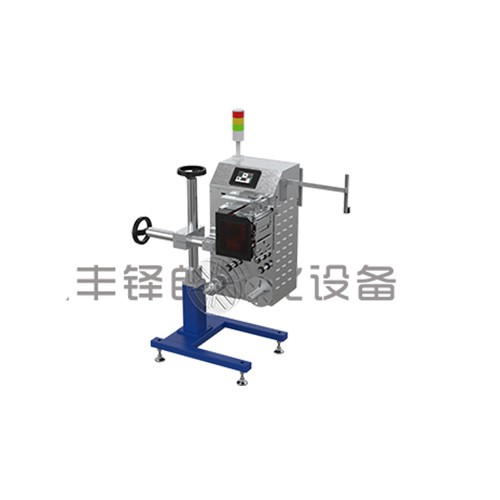

Online automatic printing and labeling system

Equipment technical indicators

Print engine technical indicators

Maximum printing speed: 305 mm /s (200 DPI )

Rated voltage: AC 220 V ± 5% 50 Hz

Maximum print width: 4.1 inches

Interface: RS232 , USB 2.0

Label installation method: external connection

Label roll: can be customized

Labeling machine technical indicators

Labeling method: vacuum adsorption labeling

Control mode: PLC program control

Labeling speed: 20 - 40 times/minute (varies with different label sizes)

Rated voltage: AC220V ± 5% 50 Hz

Rated air pressure: 0.5 - 0.7Mpa

Note： It can realize online 1:1 printing and labeling with the host computer system
